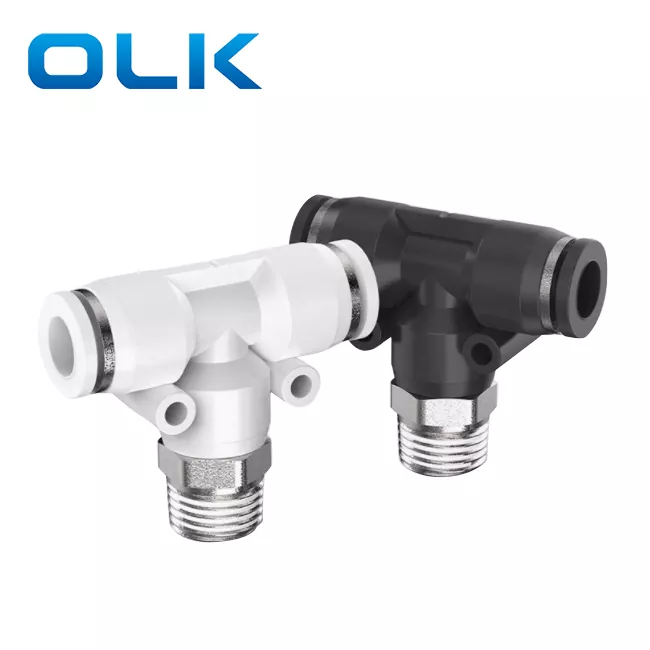

Dorong tee cabang PB dalam pemasangan tabung

Kode pemesanan

Pb

8

-

01

Model

Ukuran tabung (metrik)

Jenis benang (benang tabung lurus 55 °)

Pemasangan seri PB

4: 4mm

01: G1/8

6: 6mm

02: G1/4

8: 8mm

03: G3/8

10: 10mm

04: G1/2

12: 12mm

14: 14mm

16: 16mm

Cairan

Udara/air (bersyarat)/vakum

Tekanan operasi

0-1.0mpa

Tekanan vakum

-100kpa (10 torr)

Suhu operasi

-10-60 ℃

Bahan

Nylon (PA), Polyurethane (PU)

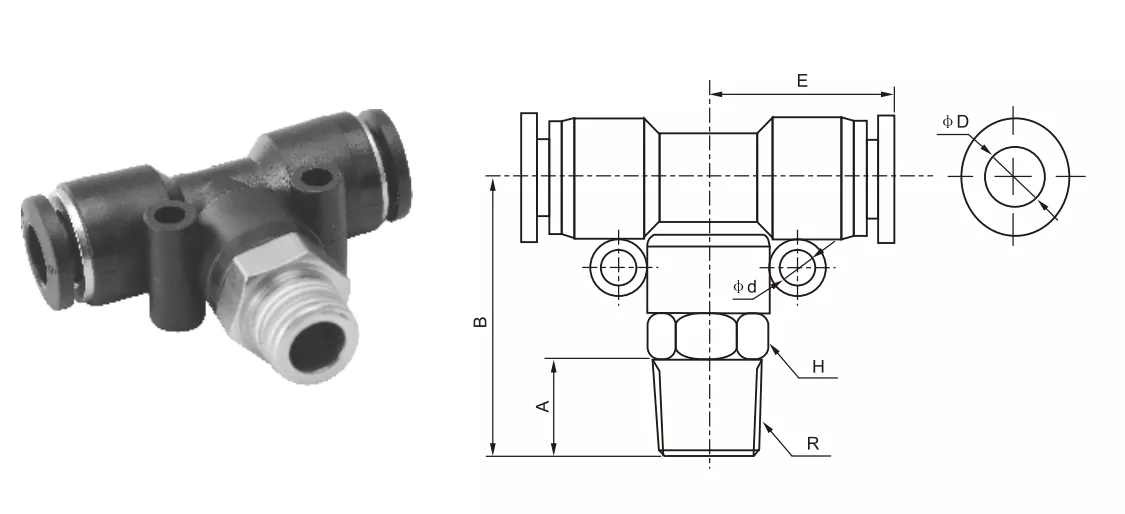

Pemasangan tabung inci

Pemasangan tabung metri

φd

R

A

B

E

H2

φd

PB5/32-M5

PB4-M5

4

M5

4.5

25.4

18.6

10

/

PB5/32-01

PB4-01

4

R1/8

7

25.4

18.6

10

/

PB5/32-02

PB4-02

4

R1/4

9

27.8

18.6

14

/

PB1/4-M5

PB6-M5

6

M5

4.5

26.8

20.8

12

3.5

PB1/4-01

PB6-01

6

R1/8

6.5

37.6

20.8

12

3.5

PB1/4-02

PB6-02

6

R1/4

9

30

20.8

14

3.5

PB1/4-03

PB6-03

6

R3/8

10

30.6

20.8

17

3.5

PB1/4-04

PB6-04

6

R1/2

10

32.5

20.8

21

3.5

PB5/16-01

PB8-01

8

R1/8

8

31.5

22.9

14

4.5

PB5/16-02

PB8-02

8

R1/4

10

33

22.9

14

4.5

PB5/16-03

PB8-03

8

R3/8

10

33.6

22.9

17

4.5

PB5/16-04

PB8-04

8

R1/2

11

35

22.9

21

4.5

PB3/8-01

PB10-01

10

R1/8

8

37

27.8

17

4

PB3/8-02

PB10-02

10

R1/4

10

38

27.8

17

4

PB3/8-03

PB10-03

10

R3/8

10

38

27.8

17

4.5

PB3/8-04

PB10-04

10

R1/2

11

39

27.8

21

4.5

PB1/2-01

PB12-01

12

R1/8

8

37.5

29.5

19

5

PB1/2-02

PB12-02

12

R1/4

10

40

29.5

19

5

PB1/2-03

PB12-03

12

R3/8

10

40

29.5

19

5

PB1/2-04

PB12-04

12

R1/2

11

41

29.5

21

5

PB14-03

16

R3/8

11

46.3

34.5

24

4

PB14-04

16

R1/2

12

47.3

34.5

27

4

Nama/Jenis

Deskripsi Struktur Antarmuka

Jalankan tee (PD)

Aliran udara utama lurus, dan cabang -cabangnya dipimpin secara vertikal

Cabang Tee (PB)

Dua antarmuka terhubung pada sudut kanan, satu di cabang "T"

Tee yang sama

Tiga port dengan ukuran yang sama
